3.3 इंच डब्ल्यूक्यूव्हीजीए आयपीएस टीएफटी मॉड्यूल

TFT Module is becoming more and more common in our lives. As a manufacturer and supplier of LCD in China, what are the advantages of this Victronix 4.3 inch WQVGA IPS TFT Module? Firstly, its IPS technology ensures consistent color and clarity with an 80-degree viewing angle from all directions (3, 6, 9, 12 o'clock) and a high typical contrast ratio of 1000:1. Secondly, its 5S2P white LED backlight (typical Vf=15V @ 40mA) provides a typical brightness of 500 cd/m² (nits) with excellent uniformity (≥80%), ensuring clear visibility in all lighting conditions. The backlight has a life expectancy from 30,000 to 50,000 hours. Besides, it utilizes a standard 24-bit parallel RGB interface (R0-R7, G0-G7, B0-B7) with control signals (HSYNC, VSYNC, DE, PCLK) for seamless integration. In addition, it passes rigorous reliability tests (thermal cycling, humidity, HALT) to operate in extreme temperatures (-20°C to +70°C).

This Victronix 4.3 inch TFT module is RoHS compliant and has been rigorously tested for reliability under high/low-temperature storage/operation, humidity, and thermal cycling. It’s widely used in industrial HMIs, embedded systems, test equipment, portable devices, and any application requiring a reliable, high-visibility color display in challenging environments.

General Specifications

VXT430MPIA-03 is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC,a back light unit. The 4.3¢¢ display area contains 480x272 pixels and can display up to 16.7M colors. This 4.3 inch WQVGA IPS TFT Module accords with RoHS environmental criterion.

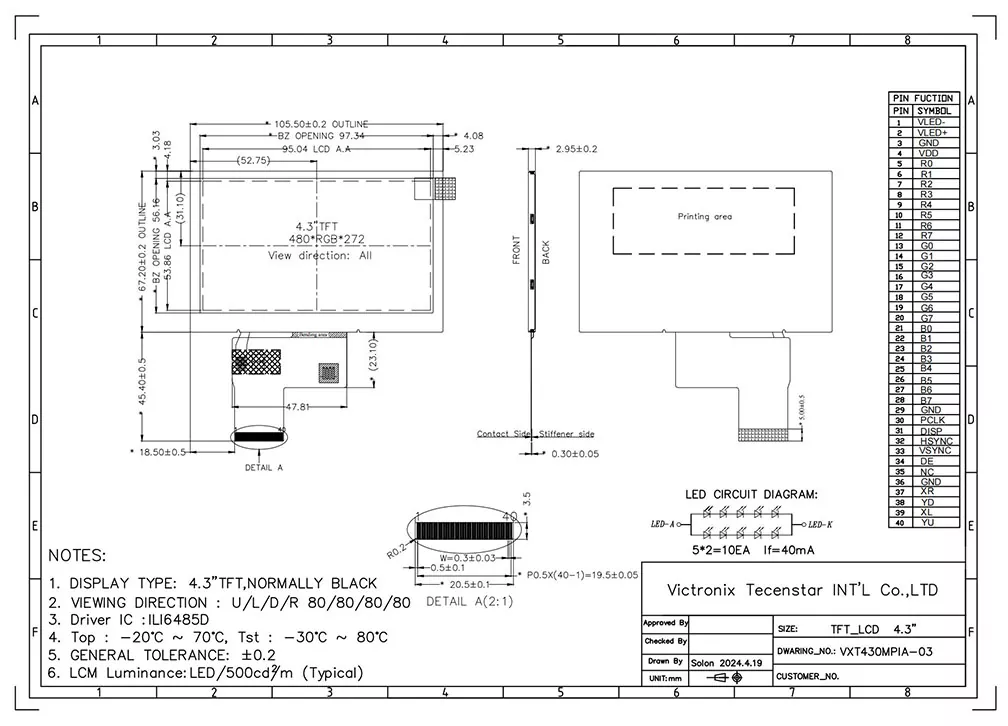

Outline Drawing
